Serial NAND Flash Components
Introduction
The JSC SPI NAND Series are a high performance and low power product designed for Serial SLC NAND flash storage applications It fully supports 120MHz Quad SPI bus protocol to achieve data throughput of up to 480Mbps in a low pin -count package.
User-configurable embedded/on-die ECC engine anables efficient flash mangement and improves the endurance of NAND flash.

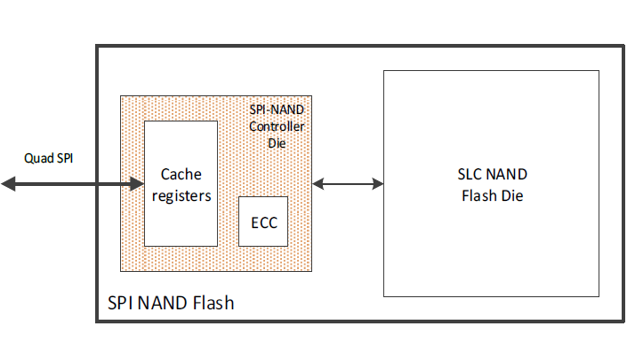

Functional Block Diagram
Features
● Density: 1Gb/2Gb/4Gb/8Gb● Supports up to 120MHz serial interface
● Embedded ECC engine
● High performance(1Gb)
● Advanced feature
- Automatic the 1st page loading after stable power-up of NAND Devices.
● Voltabe:1.8V, 3.3V
● Temperature: -40oC to +85o<
● Read ID, unique ID and parameter page from NAND devices
● Packages:8-LGA, 8WSON
● Long-term support
● Temperature: -40oC to +85o<
● Read ID, unique ID and parameter page from NAND devices
● Packages:8-LGA, 8WSON
● Long-term support
Serial NAND Flash Product Overview
* M/P : Mass Production, T.B.D : To Be Determined, C/S : Customer Sample
| Density | Voltage | Package Type | Spare Area | Page Size | Part Number | Status |
|---|---|---|---|---|---|---|
| 1Gb | 1.2V | 8-LGA (8.0mm x 6.0mm) | 64 byte | 2K page | JS28P1GQSCAHG-83 | M/P |
| 1Gb | 1.2V | 8-LGA (8.0mm x 6.0mm) | 64 byte | 2K page | JS28U1GQSCAHG-83 | M/P |
| 2Gb | 1.2V | 8-LGA (8.0mm x 6.0mm) | 128 byte | 2K page | JS28P2GQSDAHG-83 | M/P |
| 2Gb | 1.2V | 8-LGA (8.0mm x 6.0mm) | 128 byte | 2K page | JS28U2GQSDAHG-83 | M/P |
| 4Gb | 3.3V | 8-LGA (8.0mm x 6.0mm) | 256 byte | 4K page | JS28U4GQSKAHG-83 | M/P |
