Serial NAND Flash


The JSC SPI NAND Series are a high performance and low power product designed for Serial SLC NAND flash storage applications It fully supports 120MHz Quad SPI bus protocol to achieve data throughput of up to 480Mbps in a low pin -count package.
User-configurable embedded/on-die ECC engine anables efficient flash mangement and improves the endurance of NAND flash.

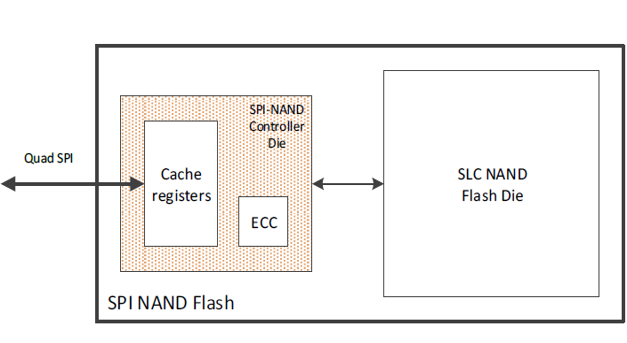

Functional Block Diagram


● Density: 1Gb/2Gb/4Gb/8Gb
● Supports up to 120MHz serial interface
● Embedded ECC engine
● High performance(1Gb)
● Advanced feature
- Automatic the 1st page loading after stable power-up of NAND Devices.
● Voltabe:1.8V, 3.3V
● Temperature: -40oC to +85o<
● Read ID, unique ID and parameter page from NAND devices
● Packages:8-LGA, 8WSON
● Long-term support
Density Voltage Package Type Spare Area Page Size Part Number Status
4Gb 3.3V 8-LGA (8.0mm x 6.0mm) 256 byte 4K page JS28U4GQSKAHG-83 M/P
